LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

Certificación
CHINA Royal Display Co.,Limited certificaciones
CHINA Royal Display Co.,Limited certificaciones
Comentarios de cliente
Exhibición real, proveedor perfecto del LCD, respuesta rápida, gracias por la cooperación.

—— Beata de Polonia

No recibió los lcds hoy, ningún daño y prueba bien, las gracias.

—— Natalya Kryukova de Rusia

Entrega rápida y buena calidad, soy feliz con la exhibición real, ordenaré más adelante.

—— Meerimgul de Turquía

Pantalla de alta calidad, servicio rápido.

—— Daniel Castelo de Suiza

Estoy en línea para chatear ahora

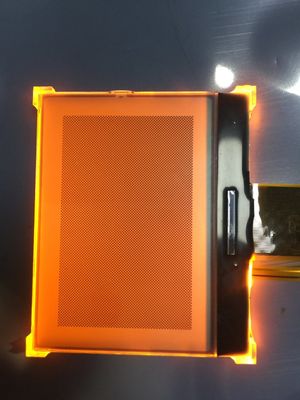

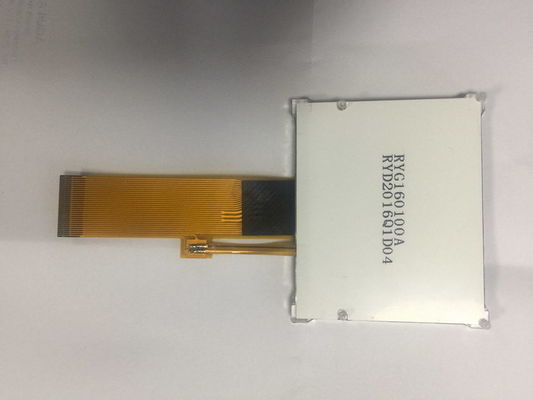

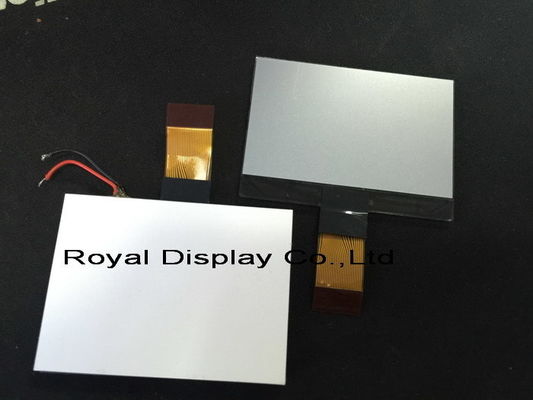

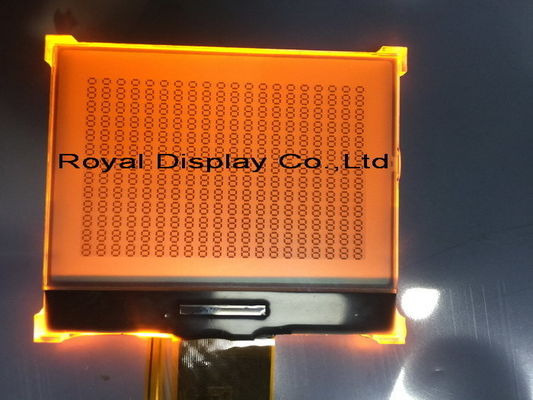

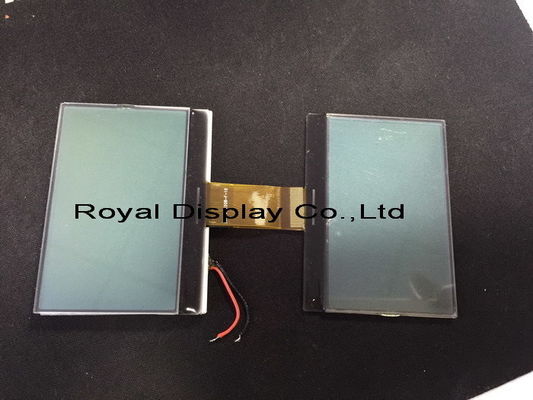

LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display
LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

Ampliación de imagen :  LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display

Datos del producto:
Lugar de origen: China
Nombre de la marca: ROYAL DISPLAY
Certificación: ROHS, ISO
Número de modelo: RYG160100A
Pago y Envío Términos:
Cantidad de orden mínima: 500pcs
Precio: Negotiable
Detalles de empaquetado: Cartones, Capboard, EPE, bandeja de la ampolla
Tiempo de entrega: 15-20 días del trabajo
Condiciones de pago: L/C, T/T, Western Union
Capacidad de la fuente: LOS 300K/M
Descripción detallada del producto
Resolución: 160*100 Color del contraluz: color blanco
Conexión: El FPC-soldar Tipo de exhibición: FSTN
Fuente de alimentación: 3V Interfaz: Paralelo
Luz del sol legible: Gama del ángulo de visión: Las 6
Conector: FFC-conector

Transflective type characters 160x100 dots Mono Graphic lcd screen module display

PRODUCT DESCRIPTION
1. 160x100dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Item Description
Product Name 160x100dots Graphic LCD Module
Model No. RYG160100A
Dot Format 160x100
Outline (mm) 55*46
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7528
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC



OUR SERVICE ADVANTAGES

1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.



Feature

1. Low power consumption

2. High brightness and luminous intensity output

3. Easy assembly

4. High intensity and reliability

5. Low voltage and current operation

6. energy saving & long life

7. Solid-state LED chip based

8. Easy mounting on printed circuit board and sockets

9. Rhos&Reach approved

10. Better show effect and wide view angle





Our Factory



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 0



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 1



LCD Chinese Supplier Transflective Type Characters 160X100 Dots Mono Graphic LCD Screen Module Display 2





FAQ



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q: Are you open to OEM processing?

A: Yes, we can OEM.



Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

Q: Do you provide Customize product ?
A: Yes, we could offer the customize the luminunce/tickness/Cover glass size and any interface.

Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.

Q: Can you produce on the OEM?
A: Yes, we can.



Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
